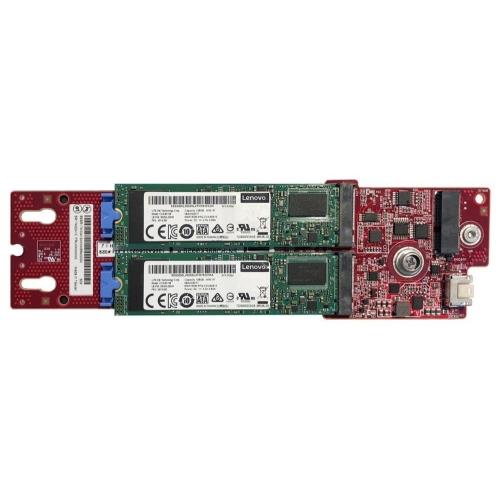

ThinkSystem M.2 SATA 2-Bay RAID Enablement Kit – 4Y37A09739

The M.2 SATA 2-Bay RAID Enablement Kit (4Y37A09739) has the following features:

• Supports one or two SATA M.2 drives
• Support 42mm, 60mm, 80mm and 110mm drive form factors (2242, 2260, 2280 and 22110)
• RAID support via an onboard Marvell 88SE9230 SATA RAID Controller
• Support JBOD, RAID-0 and RAID-1 (RAID support requires two M.2 drives)
• PCIe 2.0 x2 host interface; 6Gbps SATA connection to the drives
• Management and configuration support via UEFI and OS-based tools
• Supports monitoring and reporting of events and temperature through I2C
• Firmware update via Lenovo firmware update tools
